The internal boards of the ABB ASTAT system: pulse transformer, process input/output, rotor and torque observer, relay, power supply and opto splice boards.
Legacy product line, discontinued by the manufacturer. Supplied as a sourced spare on request. ABB's stated modern equivalent is the ACS880 drive with the Crane Control program (option +N5050).
Key Highlights
Function: Pulse transformer board (System I/O) - couples control signals to the power circuit
Weight: 1.03 kg net
Country Of Origin: Sweden / Finland
Customs Tariff: 85371098
Key Highlights
Function: Process input/output board, no analog outputs, for the control module
Alternate ABB Number: 3BSC980004R784
Weight: Approx. 0.75 kg
I/O: Digital inputs and outputs plus analog inputs; carries the master switch and reset signal (digital input 2)
Key Highlights
Function: Process input/output board with input/output control board fitted (analog outputs)
Key Highlights
Function: Input/output board, no analog outputs, for the hoist supervision system
Key Highlights
Function: Remote input/output board with digital inputs, digital outputs, analog inputs and analog outputs
Key Highlights
Function: Rotor feedback / rotor observer board with digital signal processor - derives speed and status from the motor slip rings
Weight: Approx. 0.8 kg
Key Highlights
Function: Voltage divider board
Key Highlights
Function: Torque observer board with digital signal processor for shaft torque evaluation
Weight: Approx. 0.06 kg
Key Highlights
Function: Torque observer board with digital signal processor, hardware revision A
Key Highlights
Function: Pulse repeater board
Key Highlights
Function: Duplex opto splice unit - joins two duplex HCS fibre cables
Mounting: Snaps on 35 mm DIN rail, occupies 20 mm width
Limits: Maximum 4 joints, total fibre length 150 m or less
Key Highlights
Function: Power supply board
Key Highlights
Function: Termination board for the cabin input/output link
Key Highlights
Function: Safety relay board
Key Highlights
Function: Relay board
About this product
The DATX family covers the internal boards of the ABB ASTAT crane motion controller.
The DATX 100 pulse transformer board sits inside every DASD thyristor module and couples the control signals to the power circuit. The DATX 110 is the process input/output board inside the DARA module and carries the master switch and reset signals. The DATX 130 rotor observer board and DATX 132 torque observer board each carry their own digital signal processor (DSP) and work out motor speed and shaft torque from the rotor and stator measurements.
Also grouped here are the DASA 100 power supply board, the DATD termination and safety relay boards, and the DATX 140 duplex opto splice unit used to join fibre cables.
Full Specifications

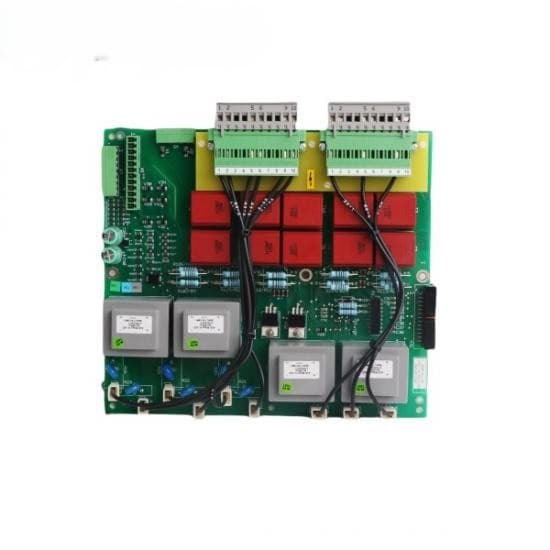

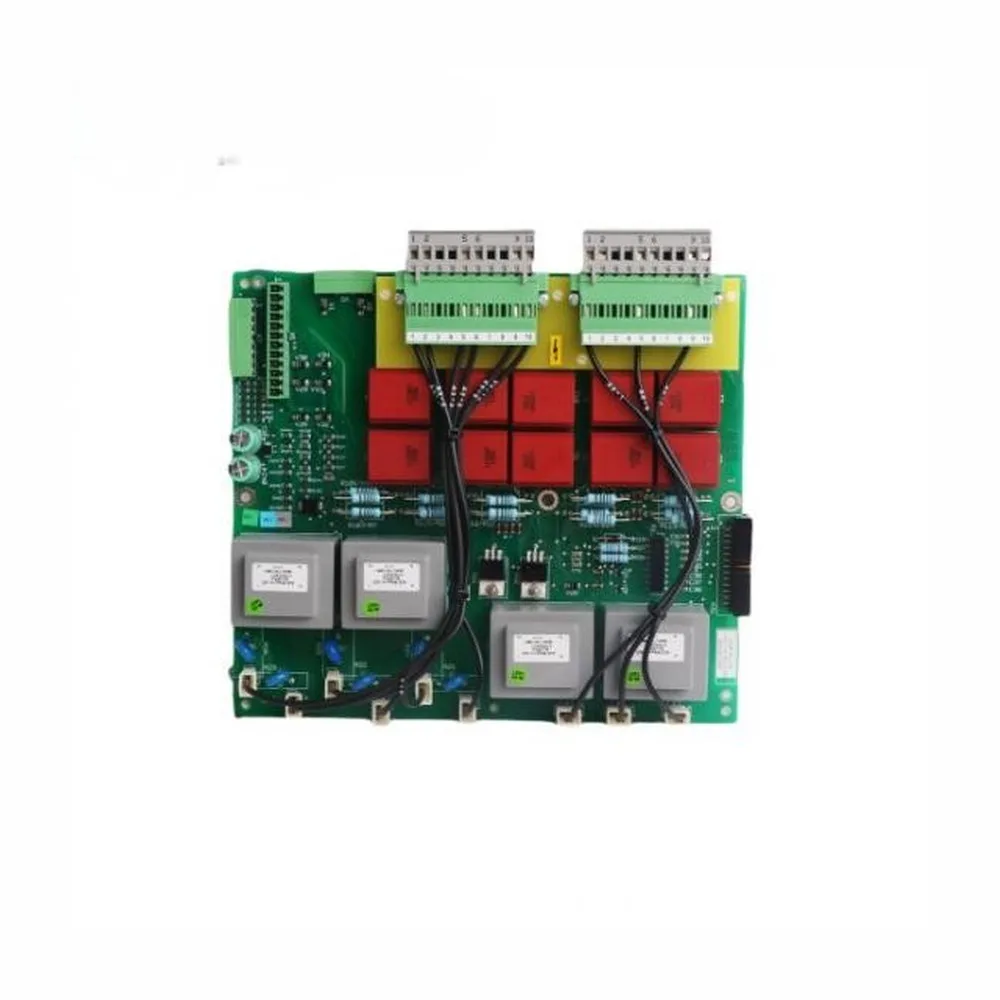

3ASC25H208 (Type: DATX 100)
Function
Pulse transformer board (System I/O) - couples control signals to the power circuit
Weight
1.03 kg net
Country Of Origin
Sweden / Finland
Customs Tariff
85371098
Fitted inside every DASD thyristor module. Common spare across all DASD variants.
Full Specifications
3ASC25H209 (Type: DATX 110)
Function
Process input/output board, no analog outputs, for the control module
Alternate ABB Number
3BSC980004R784
Weight
Approx. 0.75 kg
I/O
Digital inputs and outputs plus analog inputs; carries the master switch and reset signal (digital input 2)
Fits inside the DARA control system module.
Full Specifications
3ASC25H209+AO (Type: DATX 110+AO)
Function
Process input/output board with input/output control board fitted (analog outputs)
Analog output version of the DATX 110.
Full Specifications
3ASC25H224 (Type: DATX 111)
Function
Input/output board, no analog outputs, for the hoist supervision system
Used with the DARA 2000 hoist supervision system. Covered in chapter 13 of the ABB ASTAT manual, including lower-end, topside input/output and Profibus.
Full Specifications
3ASC25H210 (Type: DATX 120)
Function
Remote input/output board with digital inputs, digital outputs, analog inputs and analog outputs
Extended cabin input/output. The fault message DATX 120:3 not found refers to this board.
Full Specifications
3ASC25H214 (Type: DATX 130)
Function
Rotor feedback / rotor observer board with digital signal processor - derives speed and status from the motor slip rings
Weight
Approx. 0.8 kg
Fitted in DARA 1001 and DARA 1010. Some resellers wrongly describe this as an ACS800 or ACS580 board - it is an ASTAT board.
Full Specifications
3ASC25H215 (Type: DATX 131)
Function
Voltage divider board
This is a voltage divider board, not a rotor feedback board as some reseller listings claim.
Full Specifications
3ASC25H216 (Type: DATX 132)
Function
Torque observer board with digital signal processor for shaft torque evaluation
Weight
Approx. 0.06 kg
Fitted in DARA 1001 and DARA 1010.
Full Specifications
3ASC25H216A (Type: DATX 132 (rev A))
Function
Torque observer board with digital signal processor, hardware revision A
Hardware revision of 3ASC25H216, not a different board.
Full Specifications
3ASC25H219 (Type: DATX 133)
Function
Pulse repeater board
Revision 3ASC25H219B also exists. Some resellers describe this board as a mechanical torque observation or voltage regulation board; ABB describes it as a pulse repeater board.
Full Specifications
3ASC25H266 (Type: DATX 140)
Function
Duplex opto splice unit - joins two duplex HCS fibre cables
Mounting
Snaps on 35 mm DIN rail, occupies 20 mm width
Limits
Maximum 4 joints, total fibre length 150 m or less
Full Specifications
3ASC25H205 (Type: DASA 100)
Function
Power supply board
Internal power supply board for the ASTAT system.
Full Specifications
3ASC25H207 (Type: DATD 100)
Function
Termination board for the cabin input/output link
Full Specifications
3ASC25H213B (Type: DATD 111)
Function
Safety relay board
Full Specifications
3ASC25H236 (Type: DATX 113)
Function
Relay board
Applications
Spare boards for existing ASTAT thyristor modules and control modules
Rotor and torque observation for tachometer-free vector control
Fibre-optic link extension between control module and cabin
Industries
Steel and metals
Ports and harbours
Paper
Power plants
Cement
Common faults and symptoms
Board not found communication faults, for example DATX 110 not found or DATX 120:3 not found
Fuse degradation and nuisance blowing on termination and relay boards
Terminal oxidation and loosening in coastal or steel mill dust
LED indicator failure and plastic housing embrittlement after years of thermal cycling
Need a replacement? Send us the part number from the unit's label.
