| Fits Into | DARA 1000, DARA 1001 and DARA 1010 control system modules |
|---|---|
| Country Of Origin | Sweden |
| Customs Tariff | 85371098 |
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Est. ₹89,000 – ₹1,60,000 + GST
≈ $930 – $1,680 USD (indicative, confirmed at quotation)
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Est. ₹89,000 – ₹1,60,000 + GST
≈ $930 – $1,680 USD (indicative, confirmed at quotation)
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Get a fast quote — send the part number, and we'll reply with a quote in 24–36 hours.
Ask on WhatsAppThe main control board (DAPC 100) and the input/output communication board (DAPU 100) that sit inside the ABB ASTAT DARA control system module.
Legacy product line, discontinued by the manufacturer. Supplied as a sourced spare on request. ABB's stated modern equivalent is the ACS880 drive with the Crane Control program (option +N5050).

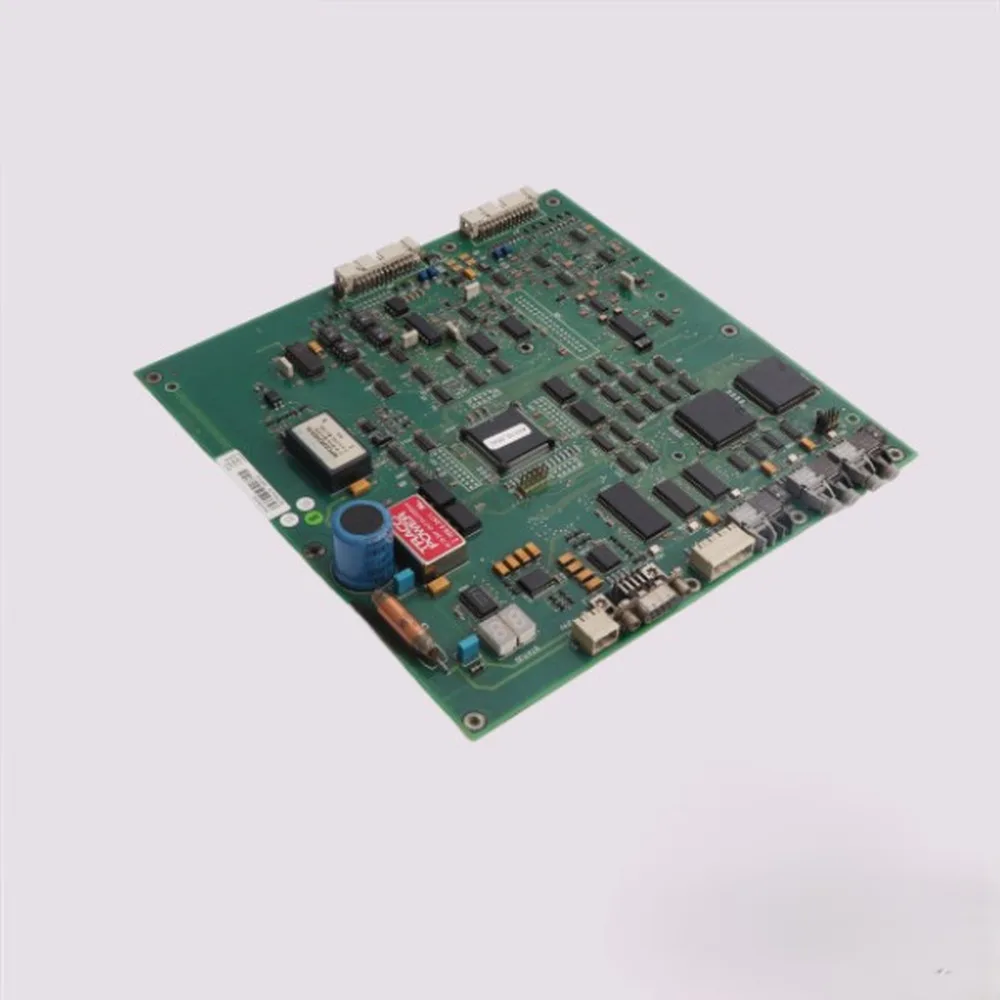

The DAPC 100 is the main control board of the ABB ASTAT crane motion controller, carrying the micro-controller that runs the torque and speed regulators and fires both thyristor bridges.
Its two-digit LED display shows the software version when healthy and a fault code when the system trips. The DAPU 100 is the input/output communication board that links the control board to the process input/output and to the cabin over fibre optics. Both boards fit inside the DARA control system module.
When ordering a replacement DAPC 100, ABB asks for the software release to be quoted, for example 10_053, because the board is supplied programmed.
3ASC25H203 (Type: DAPC 100)
| Function | Main micro-controller control board |
|---|---|
| Data Bus | 16 bit |
| Address Bus | 18 bit |
| Clock | 16.384 MHz |
| Interrupt Levels | 7 |
| EPROM | 512 KB |
| RAM | 64 KB, plus 2 KB internal micro-controller RAM |
| Debug Interface | BDM debug interface |
| Thyristor Interface | 2 thyristor bridge interface |
| Display | Two-digit LED, 00 to 99, shows software version or fault code |
| Jumpers | S2 and S3 select point-to-point or multi-drop; S4 selects baud rate 9600 to 115200 |
Quote the software release when ordering a spare, for example 10_053. Generation 2 boards (from spring 2003) are back-compatible and add better voltage measurement above 400 V, a new serial link, improved current measurement for parallel bridges, and 2 RS232 interfaces.
