| Supported Feedback Types | Analog tachometer (60 V per 1000 rpm recommended), dual channel pulse encoder (24 V DC supplied, differential), rotor frequency via slip rings |
|---|---|
| Multi Drop Capacity | Up to 254 units on RS485 |
| Baud Rates | 9600, 19200, 38400 and 115200 bits per second, set by DAPC 100 jumper S4 |
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Quote on request
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Get a fast quote — send the part number, and we'll reply with a quote in 24–36 hours.
Ask on WhatsAppRotor voltage speed feedback module and the RS232 to RS485 modem sets used with the ABB ASTAT crane motion controller.
Legacy product line, discontinued by the manufacturer. Supplied as a sourced spare on request. ABB's stated modern equivalent is the ACS880 drive with the Crane Control program (option +N5050).
The DADT 100 measures rotor frequency straight from the motor slip rings, which lets the ABB ASTAT system run closed-loop speed control without a tachometer or pulse encoder on the motor shaft.
It also provides rotor monitoring. The DADT 114 and DADT 124 are a matched modem pair that converts the ASTAT RS232 service port to an RS485 multi-drop link, so a single service PC can reach up to 254 units on one crane or in one bay.

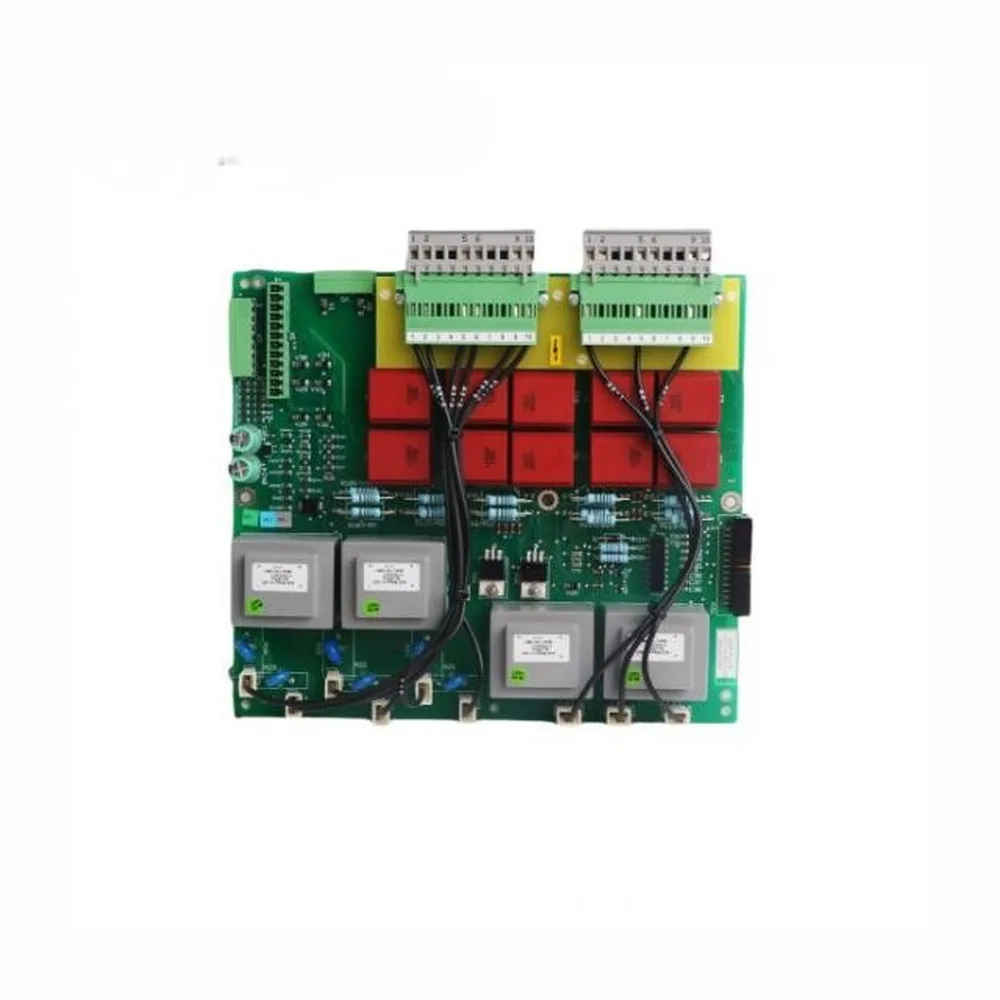

3ASC25H211 (Type: DADT 100)
| Function | Rotor voltage speed feedback module and rotor monitoring |
|---|---|
| Max Rotor Voltage | 600 V AC on terminals X1:1-3, or 300 V AC on X1:11-13 |
| Dimensions | 130 × 110 × 50 mm (H x W x D) |
| Weight | 0.5 kg |
| Supply | Internal |
| No-Load Loss | 1 W (ABB 2000 catalogue quotes 3 W) |
| Full-Load Loss | 1 W (ABB 2000 catalogue quotes 3 W) |
| Protection Class | IP20 / IP41 |
| Cable | 1.0 m attached cable to DARA 1001 or DARA 1010 |
Must be grounded.
