Power stage of the ABB ASTAT crane motion controller. Feeds the stator of a slip-ring crane motor and controls torque by phase-angle control of thyristor pairs, with no reversing contactors.
Legacy product line, discontinued by the manufacturer. Supplied as a sourced spare on request. ABB's stated modern equivalent is the ACS880 drive with the Crane Control program (option +N5050).
Key Highlights
Rated Voltage: 530 V
Rated Current: 25 A
Dimensions: 422 × (+87) × 315 mm (H x W x D)
Weight: 16 kg
No-Load Loss: 10 W
Key Highlights
Rated Voltage: 530 V
Rated Current: 50 A
Dimensions: 422 × (+87) × 315 mm (H x W x D)
Weight: 17 kg
No-Load Loss: 13 W
Key Highlights
Rated Voltage: 530 V
Rated Current: 100 A
Dimensions: 422 × (+87) × 315 mm (H x W x D)
Weight: 18 kg
No-Load Loss: 16 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 25 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 20 kg
No-Load Loss: 10 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 50 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 21 kg
No-Load Loss: 30 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 100 A
Weight: 21 kg
No-Load Loss: 30 W
Voltage Drop: 0.95 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 200 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 32 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 355 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 32 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 500 V
Rated Current: 630 A
Weight: 83 kg
No-Load Loss: 40 W
Voltage Drop: 1.45 V (includes semiconductor fuses)
Key Highlights
Rated Voltage: 500 V
Rated Current: 1000 A
Weight: 85 kg
No-Load Loss: 40 W
Voltage Drop: 1.20 V (includes semiconductor fuses)
Key Highlights
Rated Voltage: 400 V
Rated Current: 1100 A
Weight: 85 kg
No-Load Loss: 40 W
Voltage Drop: 1.15 V (includes semiconductor fuses)
Key Highlights
Rated Voltage: 600 V
Rated Current: 25 A
Weight: 20 kg
No-Load Loss: 10 W
Voltage Drop: 1.15 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 50 A
Weight: 21 kg
No-Load Loss: 30 W
Voltage Drop: 1.20 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 100 A
Weight: 21 kg
No-Load Loss: 30 W
Voltage Drop: 1.25 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 200 A
Weight: 34 kg
No-Load Loss: 40 W
Voltage Drop: 1.00 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 355 A
Weight: 34 kg
No-Load Loss: 40 W
Voltage Drop: 1.10 V
Key Highlights
Rated Voltage: 600 V
Rated Current: 630 A
Weight: 83 kg
No-Load Loss: 40 W
Voltage Drop: 1.45 V (includes semiconductor fuses)
Key Highlights
Rated Voltage: 600 V
Rated Current: 1000 A
Weight: 85 kg
No-Load Loss: 40 W
Voltage Drop: 1.40 V (includes semiconductor fuses)
Key Highlights
Rated Voltage: 415 V
Rated Current: 630 A
Reference Temperature: +55 °C
Key Highlights
Rated Voltage: 415 V
Rated Current: 1000 A
Reference Temperature: +55 °C
Key Highlights
Rated Voltage: 600 V
Rated Current: 500 A
Dimensions: 1172 × 243 × 358 mm (H x W x D)
Weight: 60 kg
No-Load Loss: 200 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 630 A
Dimensions: 1174 × 473 × 372 mm (H x W x D)
Weight: 102 kg
No-Load Loss: 200 W
Key Highlights
Rated Voltage: 600 V
Rated Current: 1000 A
Dimensions: 1174 × 473 × 372 mm (H x W x D)
Weight: 107 kg
No-Load Loss: 200 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 25 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 30 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 50 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 30 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 100 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 32 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 200 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 32 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 330 A
Dimensions: 422 × 473 × 315 mm (H x W x D)
Weight: 32 kg
No-Load Loss: 40 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 630 A
Dimensions: 1174 × 473 × 372 mm (H x W x D)
Weight: 103 kg
No-Load Loss: 200 W
Key Highlights
Rated Voltage: 690 V
Rated Current: 1000 A
Dimensions: 1174 × 473 × 372 mm (H x W x D)
Weight: 108 kg
No-Load Loss: 200 W
About this product

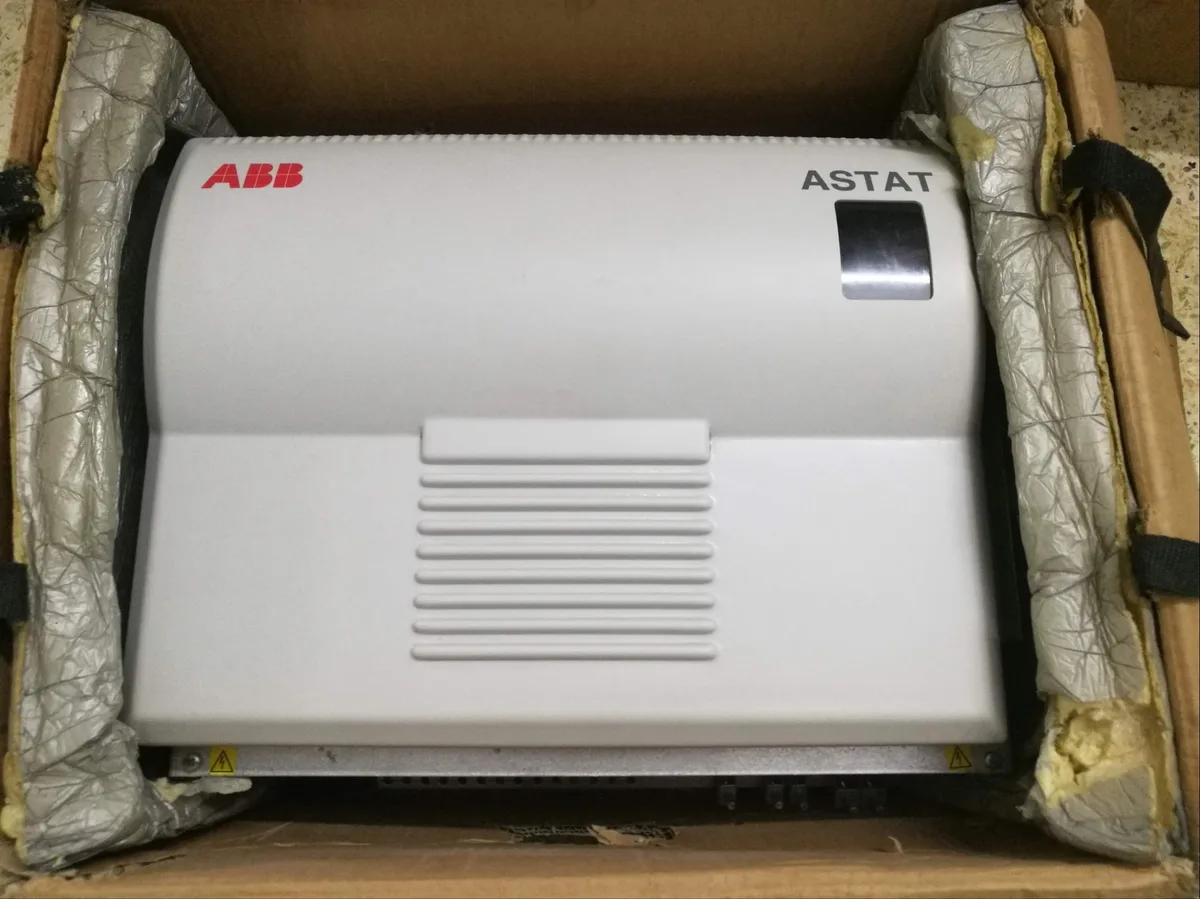

The DASD thyristor module is the power section of the ABB ASTAT crane motion controller system.
It supplies the stator of a three-phase slip-ring (wound rotor) crane motor and controls motor torque by phase-angle control using pairs of thyristors. Because direction is changed electronically through the thyristor pairs, no reversing contactors are needed. Each module carries a DATX 100 pulse transformer board internally, and all control signals reach the module over hard-clad-silica (HCS) fibre-optic links, which keeps the control electronics isolated from the power circuit.
Modules are built for hot, dusty crane environments and run continuously up to +85 degrees Celsius with current derating above the reference temperature.
Full Specifications
3ASC25H241 (Type: DASD 001)
Rated Voltage
530 V
Rated Current
25 A
Dimensions
422 × (+87) × 315 mm (H x W x D)
Weight
16 kg
No-Load Loss
10 W
Voltage Drop
0.80 V
Reference Temperature
+55 °C
Cooling
Natural, no fan
Connection
Terminals up to 35 mm²
Compact model that mounts directly onto the DARA module, adding 87 mm of width.
Full Specifications
3ASC25H242 (Type: DASD 002)
Rated Voltage
530 V
Rated Current
50 A
Dimensions
422 × (+87) × 315 mm (H x W x D)
Weight
17 kg
No-Load Loss
13 W
Voltage Drop
0.85 V
Reference Temperature
+55 °C
Cooling
1 fan (wired to DARA -X2)
Connection
Terminals up to 35 mm²
Compact model that mounts onto the DARA module.
Full Specifications
3ASC25H243 (Type: DASD 003)
Rated Voltage
530 V
Rated Current
100 A
Dimensions
422 × (+87) × 315 mm (H x W x D)
Weight
18 kg
No-Load Loss
16 W
Voltage Drop
0.95 V
Reference Temperature
+55 °C
Cooling
2 fans
Connection
Terminals up to 35 mm²
Compact model that mounts onto the DARA module.
Full Specifications
3ASC25H281 (Type: DASD 101)
Rated Voltage
600 V
Rated Current
25 A
Dimensions
422 × 473 × 315 mm (H x W x D)
Weight
20 kg
No-Load Loss
10 W
Voltage Drop
0.80 V
Reference Temperature
+55 °C
Cooling
Natural, no fan
Connection
Terminals up to 35 mm²
Re-rated part. The ABB 2000 catalogue rated this same order code at 500 V with a +50 °C reference temperature. The later AST10_054 manual rates it 600 V at +55 °C.
Full Specifications
3ASC25H282 (Type: DASD 102)
Rated Voltage
600 V
Rated Current
50 A
Dimensions
422 × 473 × 315 mm (H x W x D)
Weight
21 kg
No-Load Loss
30 W
Voltage Drop
0.85 V
Reference Temperature
+55 °C
Cooling
1 fan
Re-rated part. Earlier ABB catalogue rating was 500 V at +50 °C.
Full Specifications
3ASC25H283 (Type: DASD 103)
Rated Voltage
600 V
Rated Current
100 A
Weight
21 kg
No-Load Loss
30 W
Voltage Drop
0.95 V
Reference Temperature
+55 °C
Cooling
1 fan
Re-rated part (earlier catalogue rating 500 V at +50 °C). Dimensions are not listed: the figure in the ABB manual extract is inconsistent with a 100 A, 21 kg unit and is being confirmed.
Full Specifications
3ASC25H284 (Type: DASD 104)
Rated Voltage
600 V
Rated Current
200 A
Dimensions
422 × 473 × 315 mm (H x W x D)
Weight
32 kg
No-Load Loss
40 W
Voltage Drop
0.95 V
Reference Temperature
+55 °C
Cooling
2 fans
Connection
Bus bar 20 × 6 mm
Re-rated part. Earlier ABB catalogue rating was 500 V at +50 °C, weight 34 kg.
Full Specifications
3ASC25H285 (Type: DASD 105)
Rated Voltage
600 V
Rated Current
355 A
Dimensions
422 × 473 × 315 mm (H x W x D)
Weight
32 kg
No-Load Loss
40 W
Voltage Drop
1.00 V
Reference Temperature
+40 °C
Cooling
2 fans
Re-rated part. Earlier ABB catalogue rating was 500 V, weight 34 kg. Reference temperature stayed at +40 °C.
Order code uses the 3ASC4855xx format, not 3ASC25H. Obsolete, replaced by DASD 146 (3ASC25H270). Only current, voltage class and reference temperature are documented.
