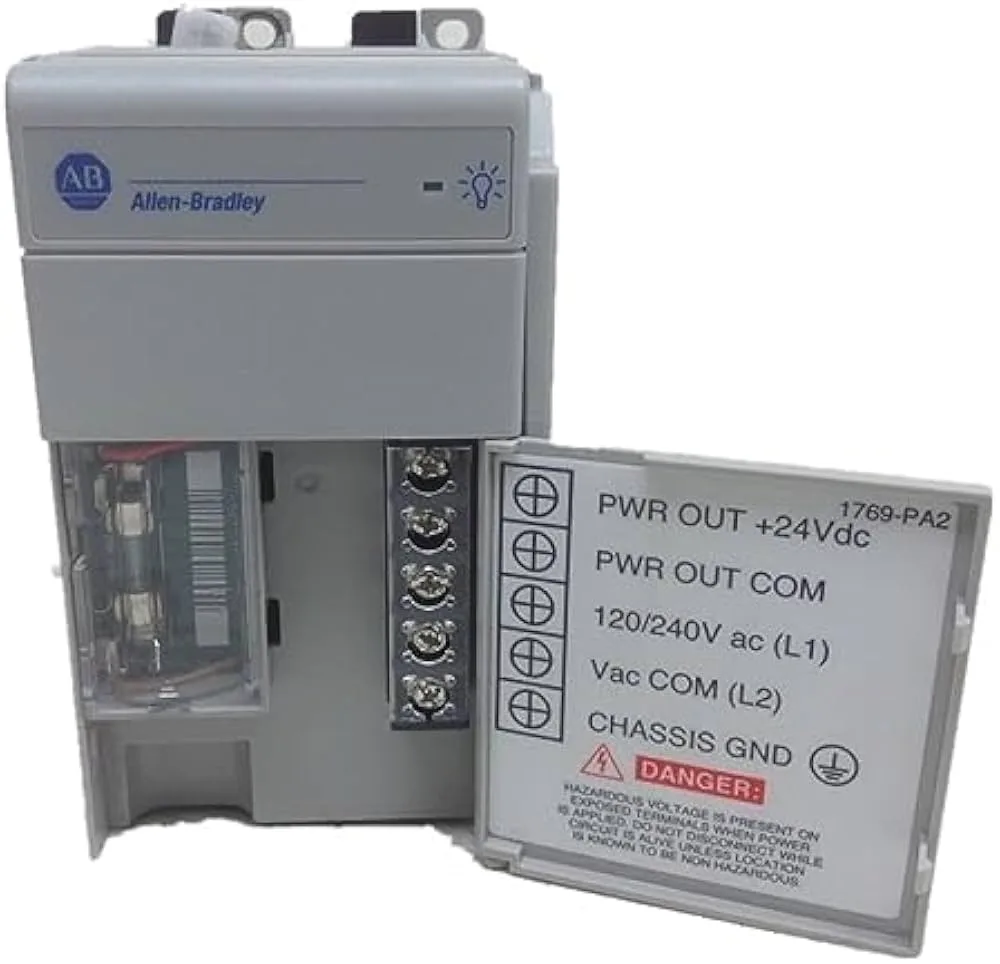

Image for reference only. © Allen Bradley. All rights reserved.
Est. ₹8,000 – ₹18,000 + GST
Lead time: 1–3 weeks (made to order) — exact lead time confirmed at quotation.
Get a fast quote — send the part number, and we'll reply with a quote in 24–36 hours.
Ask on WhatsAppThe Allen-Bradley 1769-PA2 is a modular AC power supply for the CompactLogix 1769 Compact I/O platform, accepting either 85–132 V AC or 170–265 V AC input at 47–63 Hz and delivering 24 V DC at up to 5 A (120 W) to power the controller and I/O bankplate.
It's rated for operation from 0°C to 60°C, matching the environmental rating of the rest of the 1769 chassis.
| Input Voltage | 85-132 V AC or 170-265 V AC |
|---|---|
| Input Frequency | 47-63 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Output Power | 120 W |
| Operating Temperature | 0°C to 60°C |
| Standards | CE, UL, cUL |
