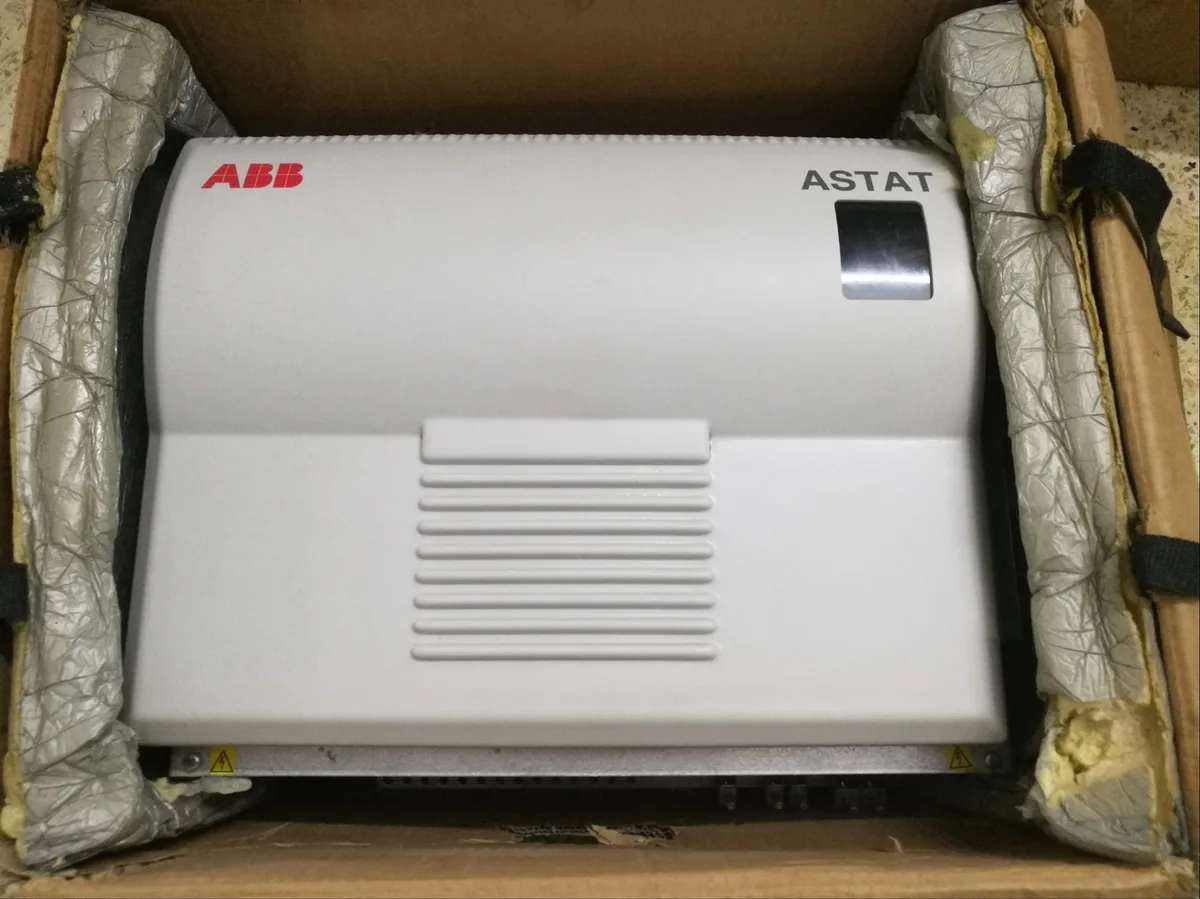

Capacitive surge arrestor and phase supervision module that protects the ABB ASTAT thyristor modules from line surges and phase loss.
Legacy product line, discontinued by the manufacturer. Supplied as a sourced spare on request. ABB's stated modern equivalent is the ACS880 drive with the Crane Control program (option +N5050).
Key Highlights
Rated Voltage: 380 to 415 V AC
Weight: 2.5 kg
No-Load Loss: 30 W
Full-Load Loss: 30 W
Key Highlights
Rated Voltage: 440 to 525 V AC
Weight: 2.7 kg
No-Load Loss: 35 W
Full-Load Loss: 35 W
Key Highlights
Rated Voltage: 600 V AC
Weight: 2.9 kg
No-Load Loss: 35 W
Full-Load Loss: 35 W
Key Highlights
Rated Voltage: 380 to 400 V AC
Dimensions: 300 × 180 × 240 mm (H x W x D)
Weight: 2.5 kg
No-Load Loss: 15 W
Full-Load Loss: 15 W
Key Highlights
Rated Voltage: 415 V AC
Dimensions: 300 × 180 × 240 mm (H x W x D)
Weight: 2.5 kg
No-Load Loss: 15 W
Full-Load Loss: 15 W
Key Highlights
Rated Voltage: 440 to 480 V AC
Dimensions: 300 × 180 × 240 mm (H x W x D)
Weight: 2.5 kg
No-Load Loss: 15 W
Full-Load Loss: 15 W
Key Highlights
Rated Voltage: 500 to 600 V AC
Dimensions: 300 × 180 × 240 mm (H x W x D)
Weight: 2.7 kg
No-Load Loss: 20 W
Full-Load Loss: 20 W
Key Highlights
Rated Voltage: 690 V AC
Frequency: 50 Hz
Dimensions: 347 × 244 × 280 mm (H x W x D)
Weight: 12 kg
No-Load Loss: 50 W
Key Highlights
Rated Voltage: 690 V AC
Frequency: 60 Hz
Dimensions: 347 × 244 × 280 mm (H x W x D)
Weight: 12 kg
No-Load Loss: 50 W
About this product
The DASG overvoltage protection module protects the ABB ASTAT crane drive from mains surges and from running on a lost or wrong phase.
It combines a capacitive surge arrestor, phase fall-out monitoring (phase sequence and level) and, on the 2xx series, 32 joule varistors between phases. One DASG is selected per crane, per cable system feeding a main contactor. On 690 V systems a DASG 222 or DASG 223 is compulsory, because 690 V thyristor modules do not carry their own internal overvoltage protection.
Full Specifications
3ASC25H264 (Type: DASG 118)Obsolete
Rated Voltage
380 to 415 V AC
Weight
2.5 kg
No-Load Loss
30 W
Full-Load Loss
30 W
Older 1xx series. Replaced by the 2xx series (DASG 218) in release AST10_04C.
Older 1xx series. Voltage bands were rearranged when the 2xx series arrived, so the replacement is not a straight one-for-one - check the system voltage before substituting.
Full Specifications
3ASC25H299 (Type: DASG 121)Obsolete
Rated Voltage
600 V AC
Weight
2.9 kg
No-Load Loss
35 W
Full-Load Loss
35 W
Older 1xx series. Replaced by DASG 221 in the 2xx series.
